Products center

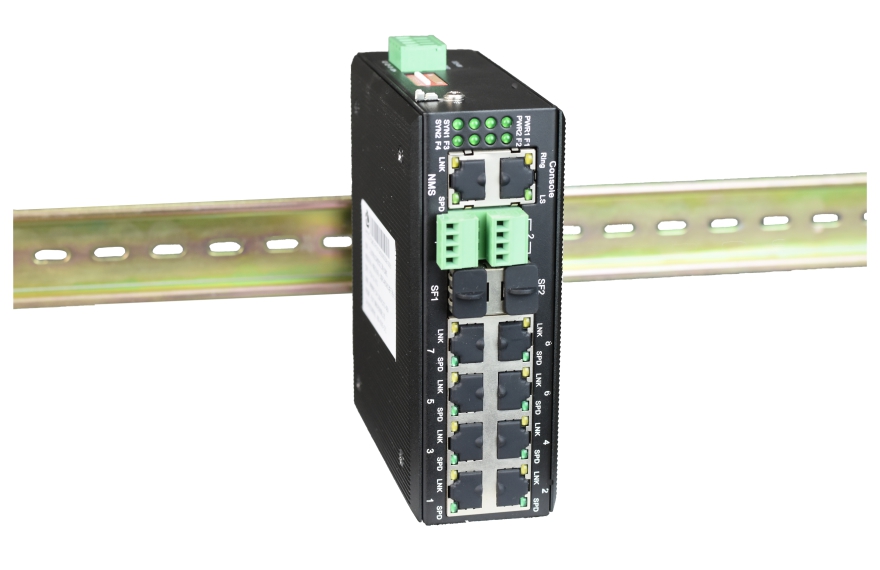

Managed 8FE to 100base-FX Fiber Media Converter

Type:FCMG-F8N Message

Description:This series of products is industrial grade 8*100base-T to100base-FX optical fiber conversion mainly used for optical fiber network long distance (20/40/60/80/120 km) transmission. This product share the 100M bandwidth each channel bandwi

Product Description
    This series of products is industrial grade 8*100base-T to100base-FX optical fiber conversion mainly used for optical fiber network long distance (20/40/60/80/120 km) transmission. This product share the 100M bandwidth each channel bandwidth can be set by Console (Ethernet interface can support VLAN into exchange namely logic) isolation; 1 Console port.
    Ethernet switch chip+FPGA scheme based on OAM frame with remote management function support Console/WEB/Independent SNMP Manager and 2U can also be inserted with SNMP network 1*FE optical transceiver card energy management to the equipment in SNMP software;
Functional Properties
◆ he industrial Ethernet series is designed for harsh industrial environments;
◆ The equipment provides 8 Fast Ethernet port 1*100base-FX an optional Console/SNMP network port;
◆ The electrical interface (RJ45 interface) supports 10/100M adaptation full / half duplex mode and MDI/MDI-X automatic detection;
◆ Optical interface supports multimode fiber single-mode fiber double double optical fiber transmission mode of three kinds of fiber the optional SC/ST/FC/LC interface;
◆ It has the functions of broadcast storm protection balanced flow isolation conflict detection error and self reset of crash. It is suitable for video transmission and other large flow data applications;
◆ The built-in 1MBits high-speed transceiver can transmit images to avoid caching stuck phenomenon IP camera monitoring screen in a rapidly changing environment caused by;
◆ Support for VLAN ultra long packet transmission and can be used to support the IEEE802.1Q protocol switch products support for the largest 1600 bytes of Ethernet package;
◆ +FPGA scheme for Ethernet switch chip equipment with remote OAM management frame function and 2U card with SNMP network 1 optical transceiver card 1 electrical interconnection SNMP software can manage the equipment; can also support Console (CLI) /WEB / SNMP  network management independently;
◆ The network management real-time view and management of the end and the end of the Ethernet interface state and settings; equipment with power down detection function can detect when the optical signal lost for the terminal device power loss or optical fiber impassability;
◆ Supports wide range 9-55V AC and DC power input;
◆ Support for internal isolation redundant dual power input;
◆ The power supply supports overload protection and anti reverse connection protection;
◆ Comply with industrial grade four electromagnetic compatibility requirements;
◆ Super lightning protection function: against lightning resistance induction high voltage anti surge etc.;
◆ No fan high heat dissipation reduced repair time;
◆ Anodized aluminum housing IP40 protection level able to withstand the harsh environment test;

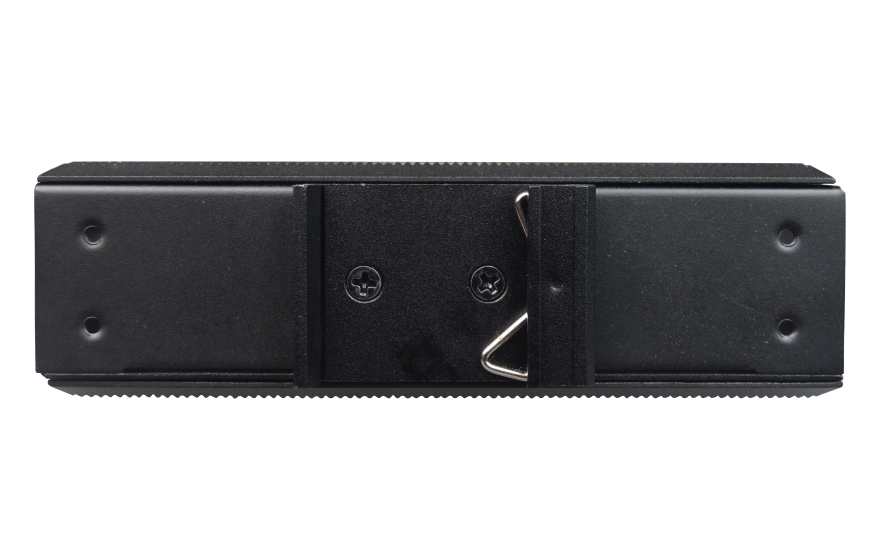

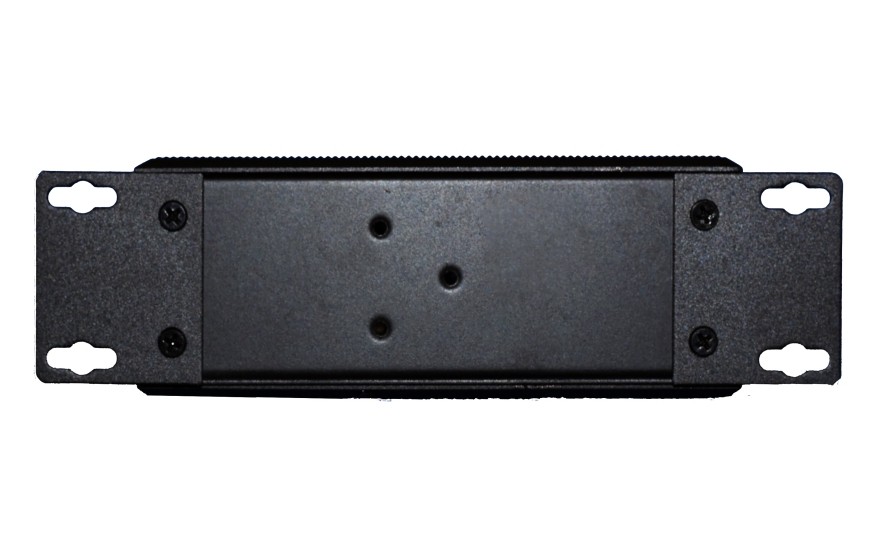

◆ Rail or wall mounting;
◆ Wide temperature range: working temperature -40 degrees ~ +85 degrees centigrade;
◆ All models are tested by 100% toaster guarantee period: 5 years;
Technical Parameters
◆  E1 Interface
    Interface Standard:      comply with protocol G.703;
    Interface Rate:             n*64Kbps±50ppm;
    Interface Code:            HDB3;
    E1 Impedance:             75Ω (unbalance) 120Ω (balance);
    Jitter tolerance:            In accord with protocol G.742 and G.823
    Allowed Attenuation:   0~6dBm
◆  Ethernet interface (10/100M)
    Interface rate:              10/100 Mbps half/full duplex auto-negotiation
    Interface Standard:      Compatible with IEEE 802.3 IEEE 802.1Q (VLAN)
    MAC Address Capability: 4096
    Connector:                  RJ45 support Auto-MDIX
◆  Power
    Power supply: AC180V ~ 260V；DC –48V；DC +24V
    Power consumption: ≤10W
◆  Dimension
    Product Size: Mini Type    216X140X31mm(WXDXH)
            Simple packaging:   274X193X84mm(WXDXH)
            Piece Weight :    1.25KG
◆  Working environment
    Working temperature: -10°C ~ 50°C
    Working Humidity:        5%~95 % (no condensation)
    Storage temperature:   -40°C ~ 80°C
    Storage Humidity:         5%~95 % (no condensation)

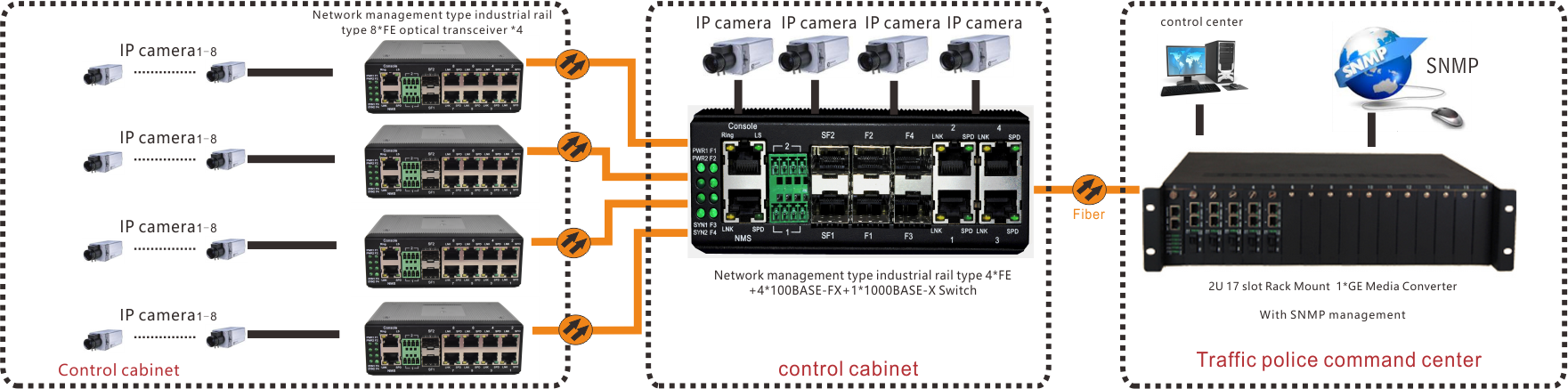

Application Scheme
DataSheet Download
?
