Products center

FE Fiber Media Converter（external power）

Type:FCMB-F1e Message

Description:1*FE+1*100Base-S/LX Ethernet Switch（mini），External AC220 / 5V or DC48V / 5V power adapter

Product Description
              This series of products are IEEE802.3 Ethernet media converter, can realize 10/100Base-T twisted pair and 10/100Base-FX two medium conversion or extend the network transmission distance, is mainly used for optical fiber network transmission distance (20/40/60/80/120 km), fully support the 10/100M transmission rate.
Functional Properties
? automatically adapt to 10Mbps and 100Mbps environment, easy to upgrade the network;
? monitor with anti-crash auto-reset function for high-definition network cameras and other heavy duty applications;
? support full and half duplex network communication, with auto-negotiation capability;

? VLAN support the transmission of long packets can support IEEE802.10 protocol products matching switches used

       to support up to 1600-byte Ethernet packets;

? Support FX half / full duplex and link failure alarm switch selection;
? Support UTP crossover Direct Connect adaptive, easy system commissioning and installation;
? low power consumption. Low heat, stable operation for a long time;
? External AC220 / 5V power adapter, can also be an external DC-48V / 5V power adapter;
Technical Parameters

u   Ethernet UTP Interface

    Interface rate:              10/100 M, half/full duplex auto-negotiation

    Interface Standard:      Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)

    MAC Address Capability: 4096

    Connector:                  RJ45, support Auto-MDIX

u  Optical Ethernet interface

    Wave Length:          1310nm, 1550nm

    Interface rate:              100 M, half/full duplex

    Interface Standard:      Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)

    MAC Address Capability: 4096

    Connector:                  FC/SC

    Fiber Transmission Distance is limited by optical circuit loss and additional loss as a result of connectors, fittings and patch panel.

    Transmission distance may also be limited by fiber optic bandwidth.

u   Power

    Power supply: AC180V ~ 260V；DC –48V；DC +24V

    Power consumption: ≤10W

u   Dimension

   Product size:   93 X70 X25 mm(WXDXH)

   Simple packaging: 295X225X84mm( WXDXH)

   Piece weight:  0.5KG

u  Working environment

    Working temperature: -10°C ~ 50°C
    Working Humidity:        5%~95 % (no condensation)

    Storage temperature:   -40°C ~ 80°C
    Storage Humidity:         5%~95 % (no condensation)

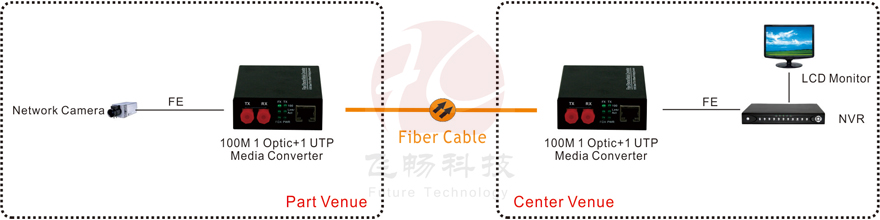

Application Scheme

Applications


DataSheet Download
?
