Products center

Ethernet V.35 interface converter

Type:FCC-V1F1 Message

Description:Ethernet V.35 interface converter ， Used in pairs

Product Description
           This convertor provide conversion from V.35 channel to Ethernet interface and delivers Ethernet services over existing V.35 lines V35-ETH converter provides easy conversion from V.35 channel to standard 10/100 base T Ethernet interface Can used widely in connecting between WAN and LAN monitoring etc. The Ethernet interface is 10/100Mbps auto negotiation and can be full/half duplex.

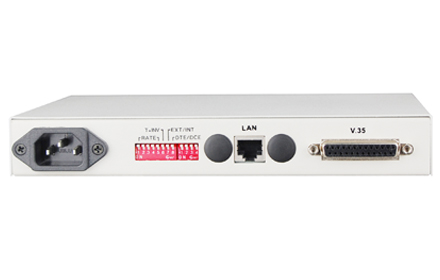

            Local management of the V35-ETH Converter is provided via DIP switches. Front panel LEDs monitor the V.35 link Ethernet LAN and other serial ports for status and Loss of Sync V35-ETH compact V.35 Access Converter provides V.35 Network Termination as well as serial or Ethernet LAN interface conversion in a standalone or rack mount package. V35-ETH terminates the V.35 Telco interface and converts the data for transmission to a user-oriented 10baseT interface.
Functional Properties
Ø based on self -copyright IC high software content (kernel chip based on software)
Ø   V.35 interface provide DTE and DCE type: DTE rate is 0 to 10M DCE rate is n x 64k(N=1 to 32)
Ø   Provide 2 loop functions: local V.35 loop local 10 base-T loop.
Ø   Have pseudo random code test function easy the installation and maintenance.
Ø   Power supply option: AC220V DC-48V. The positive and negative terminal can be exchanged for DC-48V easy for installation
Ø   Network manager interface SNMP management
Ø   Deliver Ethernet over V.35 line
Technical Parameters

u   Ethernet interface

    Interface Standard:  comply with protocol G.703;

    Interface Rate:  2048Kbps±50ppm;

    Interface Code: HDB3;

    Impedance:   75Ω (unbalance) 120Ω (balance);

    Jitter tolerance: In accord with protocol G.742 and G.823

    Allowed Attenuation: 0~6dBm

u   V.35 interface

    Interface rate:              n*64Kbps
    Interface Standard:      Compatible with V.35 Standard
    Connector:                   DB25
    Connect Mode:         DCE
    Clock Type:                 G.703 restored clock Internal clock

u   Power

    DC: -48V (-36 to -72V); +24 V (Optional)
    AC: 90 to 260 VAC ; 47 ~ 63Hz
    Power Interface: DC power terminal/AC socket
    Power Consumption: 3 W maximum

u   Dimension

    Product size:        216X140X31mm(WXDXH)
    Simple packaging:  274X193X84mm(WXDXH)
    Piece weight : 1.25KG

u  Working environment

    Working temperature: -10°C ~ 50°C
    Working Humidity: 5%~95 % (no condensation)
    Storage temperature: -40°C ~ 80°C
    Storage Humidity: 5%~95 % (no condensation)

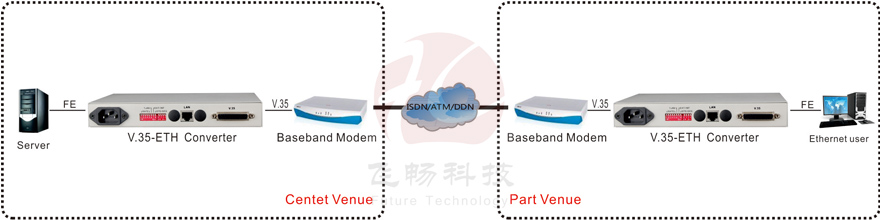

Application Scheme

Applications

DataSheet Download
?
