Products center

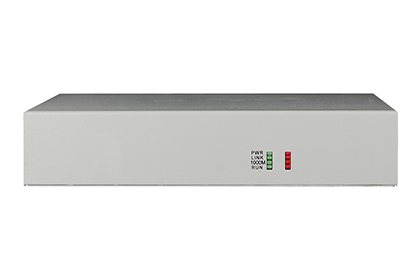

8GE Configurable VLAN Fiber Media Converter

Type:FCM-G8C1 Message

Description:8* GE+1 * 1000base-S/LX Ethernet Switch，Console，VLANBroadCom company based non-blocking switching chip solution.

Product Description
   This series is IEEE802.3 Ethernet media converter 10/100/1000M twisted pair to 1000base-X fiber media is mainly used for long-distance fiber-optic network (20/40/60/80/100 km) transmission. This product provides one gigabit optical port; 8 Gigabit Ethernet port and shared gigabit bandwidth the bandwidth of each channel can be set via the Console port (Ethernet interface switching port can support VLAN classification) namely logical isolation; a Console port. With a sound alarm function the whole stable reliable low power consumption high integration small size

Functional Properties
Ø BroadCom company based non-blocking switching chip solution (non-exchange market two five chip stitching) which with large cache with the crash CPU monitoring reset function network cameras for video heavy load applications
Ø Low power consumption low heat stable performance long life
Ø Ethernet electrical interface automatically adapts to 10/100/1000Mbps environment MDI/MDI-X auto-negotiation easy to upgrade the network;
Ø Device provides one gigabit optical port; 8 Gigabit Ethernet ports and gigabit bandwidth sharing; a Console port that supports super terminal control device;
Ø Support full-duplex and half-duplex network communication with auto-negotiation capability;
Ø Support the transmission of extra-long VLAN packets that can support IEEE802.1Q Items matching switch protocol used to support up to 9K bytes jumbo frame;
Ø Multiple power mode options: AC220V DC-48V / DC + 24V / DC + 12V and the like;
Ø Ethernet interfaces with lightning protection lightning reached GB / T17626.5 (IEC61000-4-5) Short circuit current wave 8 / 20μs open circuit peak output voltage 6KV standards;
Ø DC-48V/DC+24V ower has polarity automatic detection function you can install the device without differentiation between positive and negative polarity.


Technical Parameters
u Ethernet UTP Interface
Interface rate: 10/100/1000M half/full duplex auto-negotiation
Interface Standard: Compatible with IEEE 802.3 IEEE 802.1Q (VLAN)
MAC Address Capability: 4096
Connector: RJ45 support Auto-MDIX
u Optical interface
Wave Length: 1310nm 1550nm
Interface rate: 1000 M half/full duplex
Interface Standard: Compatible with IEEE 802.3 IEEE 802.1Q (VLAN)
MAC Address Capability: 4096
Connector: FC/SC
    Fiber Transmission Distance is limited by optical circuit loss and additional loss as a result of connectors fittings and patch panel.Transmission distance may also be limited by fiber optic bandwidth.
u Working environment
Working temperature: -10°C ~ 50°C
Working Humidity: 5%~95 % (no condensation)
Storage temperature: -40°C ~ 80°C
Storage Humidity: 5%~95 % (no condensation)

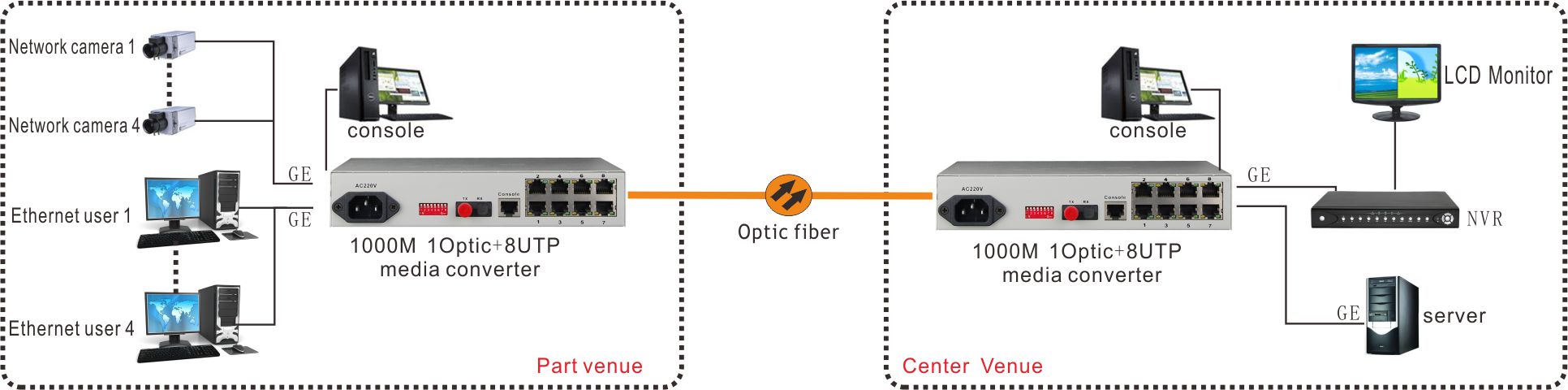

Application Scheme
DataSheet Download
?
