Products center

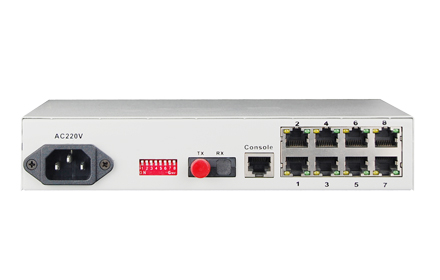

8*FE+1*1000 base-S/LX Ethernet Switch

Type:FCM-F8v Message

Description:8*FE+1*1000 base-S/LX Ethernet Switch，Console，VLAN Logic Isolation，Each port rate can reach 100M

Product Description
               FC-SW8 is Ethernet IEEE802.3 media transceiver to achieve media conversion or extending network transmission distance between two kinds of media which are 8*10/100base-T UTP and 1*1000base-S/LX. It mainly used for fiber network far distance (20/40/60/80/100km) transmission supports 10/100/1000M or 10M100M1000M transmission rate. Fiber port and UTP can work through 100M or 1000M rate.
Functional Properties

Ø Ethernet UTP/STP interface automatically adapt to 10/100Mbps environment upgrade network easily;

Ø Device provides 8*FE UTP/STP interface and 1*1000base-S/LX interface with SFP fiber module.

Ø Support full-duplex and half duplex network communication with auto-negotiation capability;

Ø The max package length up to 1632 Bytes which can match with the switch product complied with IEEE802.10 protocol

Ø   Support UTP cross connection switch optional convenient for system debugging and setup

Ø Device provides Console port supports Terminal control device

Ø Ethernet port priority setting

Ø AC 220V DC-48V DC24V can be optional and DC-48V/DC24V

     power has polarity automatic detectionfunction

     you can install the device without differentiation between positive and negative polarity.



Technical Parameters

 u  Ethernet UTP Interface

    Interface rate:              10/100 M half/full duplex auto-negotiation

    Interface Standard:      Compatible with IEEE 802.3 IEEE 802.1Q (VLAN)

    MAC Address Capability: 4096

    Connector:                  RJ45 support Auto-MDIX

u   Optical Ethernet interface

    Wave Length:          1310nm 1550nm

    Interface rate:              100 M half/full duplex

    Interface Standard:      Compatible with IEEE 802.3 IEEE 802.1Q (VLAN)

    MAC Address Capability: 4096

    Connector:                  FC/SC

    Fiber Transmission Distance is limited by optical circuit loss and additional loss as a result of connectors fittings and patch panel.

   Transmission distance may also be limited by fiber optic bandwidth.

u   Power

    Power supply: AC180V ~ 260V；DC –48V；DC +24V

    Power consumption: ≤10W

u   Dimension

    Product Size :       216X140X31mm( WX DXH))

    Simple packaging : 274X193 X84mm ( WX DXH)

   Piece Weight: 1.8KG

u  Working environment

    Working temperature: -10°C ~ 50°C
    Working Humidity:        5%~95 % (no condensation)

    Storage temperature:   -40°C ~ 80°C
    Storage Humidity:         5%~95 % (no condensation)

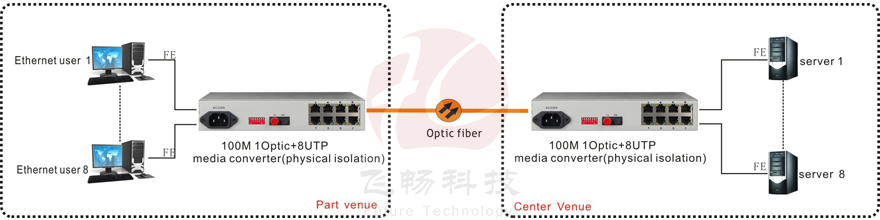

Application Scheme

Applications



DataSheet Download
?
