Products center

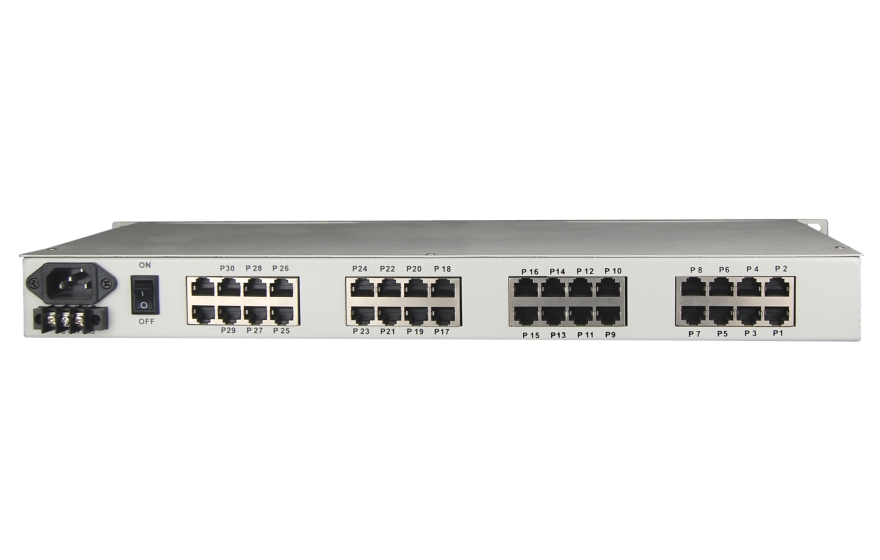

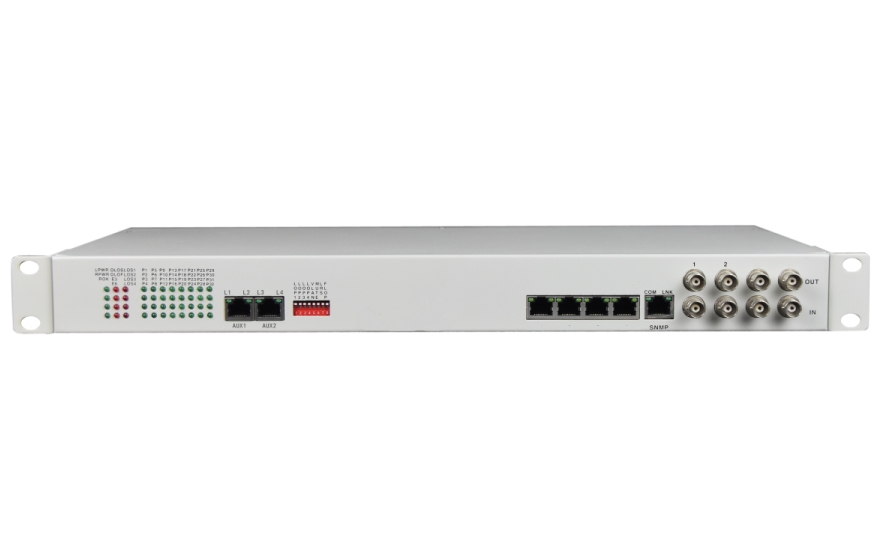

1+1 E1 30Voice over E1 PCM

Type:FCC-E1O30/FCC-E1S30 Message

Description:The E1 voice reuse device is to provide two E1 access 1 +1 backup protection 30 phone output the device part of the whole digital circuit the whole work is reliable stable low power consumption high integration small size Easy to

Product Description
  The E1 voice reuse device is to provide two E1 access 1 +1 backup protection 30 phone output the device part of the whole digital circuit the whole work is reliable stable low power consumption high integration small size Easy to install and maintain. Many telecom operators are customers rent E1 line you can use the device in the E1 leased line to open 30 telephone so that the headquarters and the branch can be free between the call.

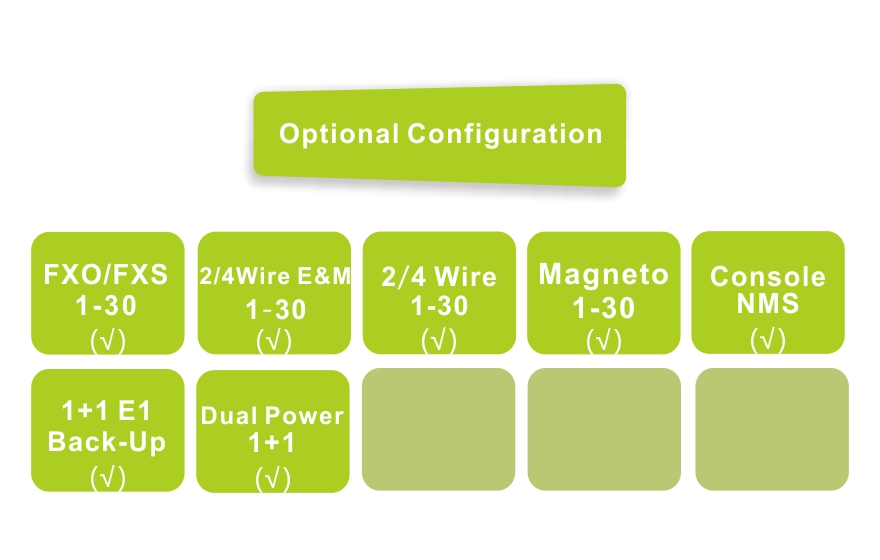

Functional Properties
◆ based on independent intellectual property rights of integrated circuits;
◆ E1 interface in line with G.703 recommendations the use of all-digital clock recovery and smooth phase-locked technology;
◆ Provide two 1 + 1 backup E1 interface the main backup function the main E1 disconnect spare E1 work to ensure that the business is not interrupted;
◆ Voice port to support FXO / FXS / two four-line EM / two-wire audio / magnet phone interface FXO port and program-controlled switches docking FXS port and the user's telephone connected;
◆ 1-30 voice access support caller ID / reverse polarity billing / fax function;
◆ Telephone interface to support the two sides of the site of the number of features;
◆ Can detect E1 signal is lost when the end of the device shutdown or E1 unreasonable;
◆ Two clock modes are available: E1 master clock E1 line clock;
◆ (EA) Ethernet interface to remote loopback (DIG) and command the remote interface to the local loopback (REM) of the Ethernet interface.
◆ Pseudo random code test function (PATT) easy to open the line that can be used as an E1 error meter to use;
◆ A variety of power supply options: AC220V DC-48V / DC24V etc .; support AC + DC; AC + AC; DC + DC and other dual power backup mode;
◆ Telephone interface with lightning protection lightning protection to GB / T17626.5 (IEC61000-4-5) short-circuit current wave 10/700μs open peak output voltage 6KV standard;
Technical Parameters

◆   E1 Interface

    Interface Standard:      comply with protocol G.703;
    Interface Rate:             n*64Kbps±50ppm;
    Interface Code:            HDB3;

    E1 Impedance:             75Ω (unbalance) 120Ω (balance);

    Jitter tolerance:            In accord with protocol G.742 and G.823

    Allowed Attenuation:   0~6dBm

◆   FXS Phone Interface

    Ring voltage: 75V

    Ring frequency: 25HZ

    Two-line Impedance: 600 Ohm (pick up)

    Return loss: 40 dB

◆   FXO Switch Interface

    Ring detect voltage: 35V

    Ring detection frequency: 17HZ-60HZ

    Two-line Impedance: 600 Ohm (pick up)

    Return loss: 40 dB

◆    EM 2/4 Line

    AD: 0dB

    DA: -3.5dB

    Two/Four-line Impedance: 600 Ohm

    Return loss: 20 dB

◆    Power

    Power supply: AC180V ~ 260V；DC –48V；DC +24V

    Power consumption: ≤10W

◆    Dimension

    Product Size:    Mini Type    216X140X31mm(WXDXH)

                          19inch       485X200X45mm(WXDXH)

    Simple packaging:  mini   274X193X84mm(WXDXH)

                            19inch    522X198X82mm(WXDXH)

    Piece Weight :    mini 1KG / 19inch  2.4KG

◆   Working environment

    Working temperature: -10°C ~ 50°C
    Working Humidity:        5%~95 % (no condensation)

    Storage temperature:   -40°C ~ 80°C
    Storage Humidity:         5%~95 % (no condensation)

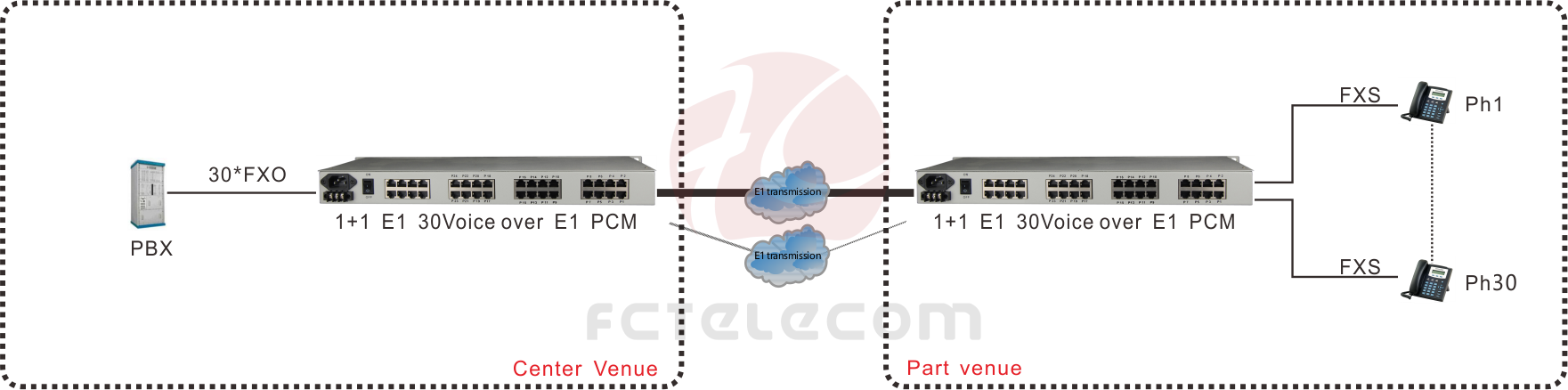

Application Scheme
DataSheet Download
?
